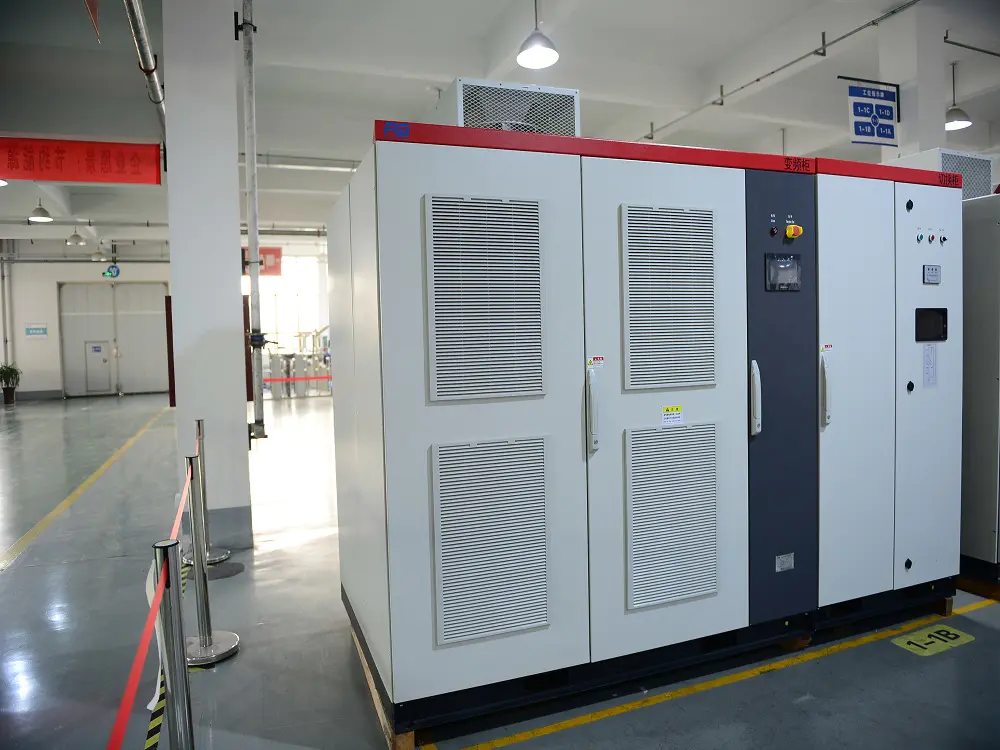

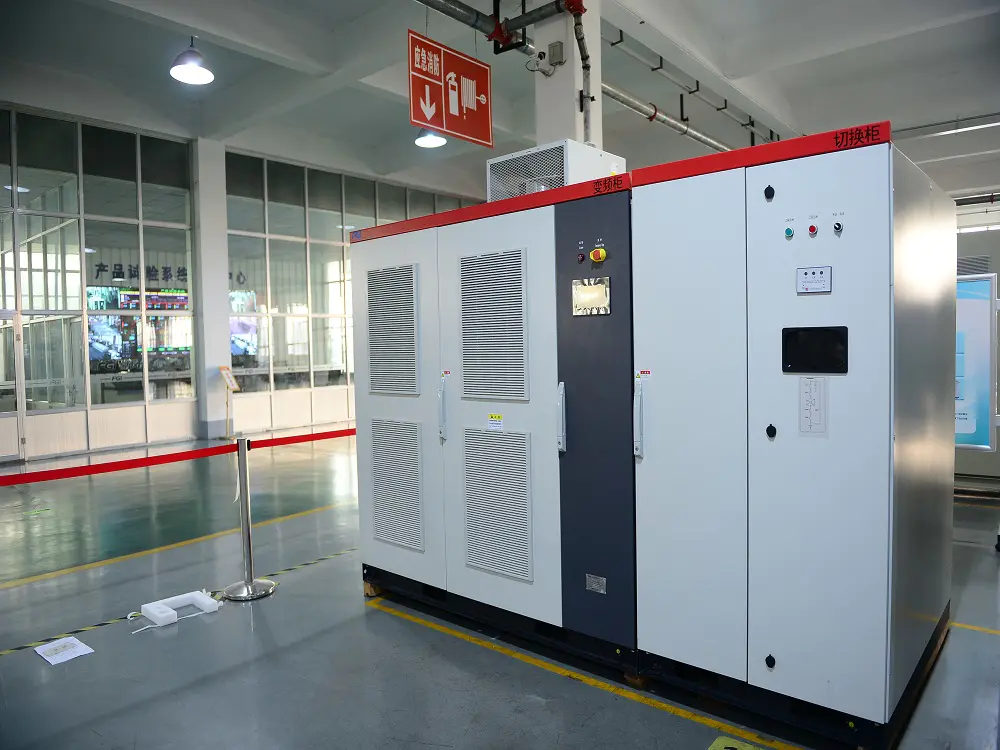

G7 integrated high-voltage inverter Advantages:
The integrated high-voltage inverter is a model launched by FGI, which has the following features compared with the split cabinet: the volume of the same capacity product is reduced by up to 37%, and the length of the whole machine is reduced by up to 37%, which can meet the user's installation requirements of small volume and reduce infrastructure costs. The whole machine is integrated with manual/automatic switching cabinet, which can be transported as a whole and can run with the motor for 15 minutes without parallel cabinet operation on site.
G7 integrated high-voltage inverter Product Profile & Features
Power range: 6kV: 200kW-560kW
10kV: 200kW-1000kW
Cooling mode: forced air cooling
Performance features: Based on the design of two quadrant synchronous (including permanent magnet synchronous motor) / asynchronous motor platform, the whole machine integrates control cabinet, power cabinet, transformer cabinet and switching cabinet, which is convenient for on-site installation.
Competitive advantage: small size, saving space; Overall transportation, convenient installation.
Load type: fan and water pump load
Table 3.6 JD-BP37-F series (6kV) Model no. and dimension(with switching cabinet)
| Model no. | Adaptive motor power | Dimension and weight |
| Width（mm） | Depth（mm） | Height(mm) | Weight(kg) |
JD-BP37-225F～
JD-BP37-560F | 225kW/6kV～
560kW/6kV | 2700 | 1500 | 1900 | 1900～2410 |
Note:
1. The above dimensions are for reference only. Please refer to the project drawings and physical objects for details.
2. Due to product upgrading, the contents of this manual will be updated regularly. If you need to buy our products, please refer to the latest product manual.
